Trip Edge

Available in us

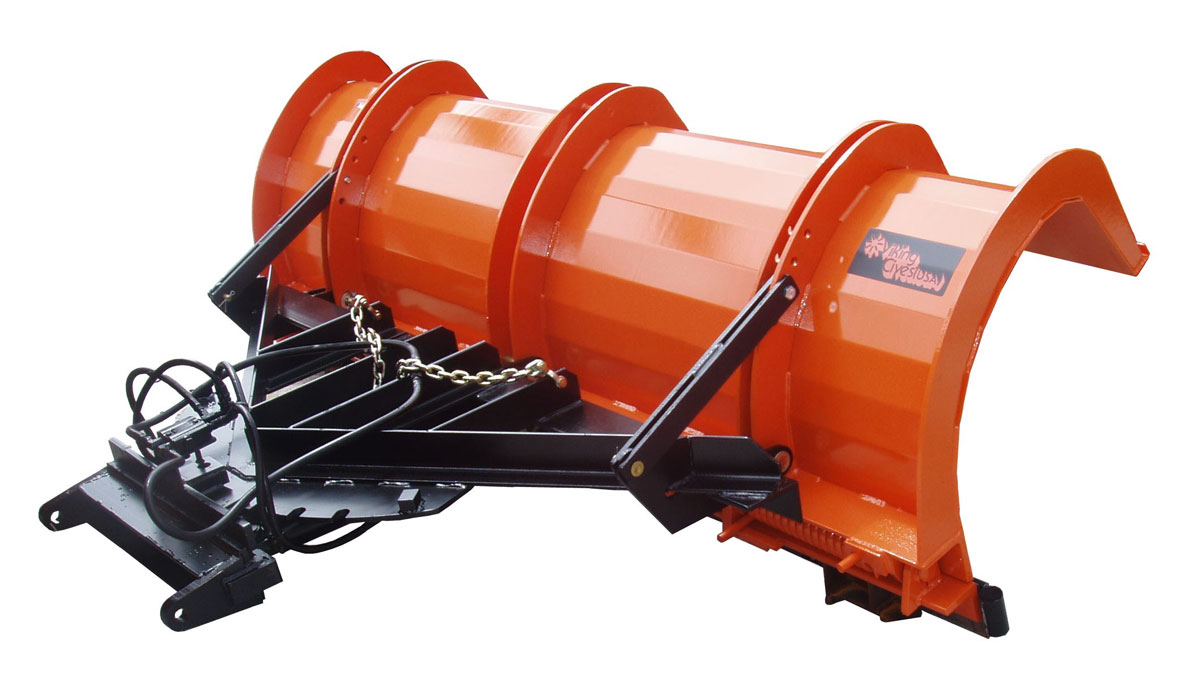

METRO TRIP EDGE REVERSIBLE PLOW

Bigger isn’t always better – that’s why the Viking metro TE is the plow of choice for some municipalities. Operating a plow truck within the confines of a village or city is a tricky job made easier when your trip edge comes in a compact package.
Spec Sheet: METRO TRIP EDGE REVERSIBLE PLOW Manual: METRO TRIP EDGE REVERSIBLE PLOW

MODEL NO. MOLDBOARD HEIGHT PATH MIN/MAX MATERIAL PRR REV POSITION WEIGHT (LBS) PRRL REV POSTION WEIGHT (LBS)
R1036MTE 36″ 8′ 2-1/2″ to 10′ STEEL 35 TO 0 DEG 2110 35, 28, 21, 0 DEG 2130
R1042MTE 42″ 8′ 2-1/2″ to 10′ STEEL 35 TO 0 DEG 2160 35, 28, 21, 0 DEG 2180
R1136MTE 36″ 9′ to 11′ STEEL 35 TO 0 DEG 2210 35, 28, 21, 0 DEG 2230
R1142MTE 42″ 9′ to 11′ STEEL 35 TO 0 DEG 2260 35, 28, 21, 0 DEG 2280
R1036MTEP 36″ 8′ 2-1/2″ to 10′ POLY 35 TO 0 DEG 1810 35, 28, 21, 0 DEG 1830
R1042MTEP 42″ 8′ 2-1/2″ to 10′ POLY 35 TO 0 DEG 1860 35, 28, 21, 0 DEG 1880
R1136MTEP 36″ 9′ to 11′ POLY 35 TO 0 DEG 1910 35, 28, 21, 0 DEG 1930
R1142MTEP 42″ 9′ to 11′ POLY 35 TO 0 DEG 1960 35, 28, 21, 0 DEG 1980
Available in us

HEAVY DUTY TRIP EDGE REVERSIBLE TE PLOW

If you’re looking for a heavy duty reversible plow that will easily clear obstacles but want an alternative to the full trip option, the Viking TE is the plow for you. A row of torsion springs at the bottom of the moldboard ensures the plow can trip without shaking the operator out of the driver’s seat.
Spec Sheet: HD TE TEP Manual: heavy duty trip edge poly reversible plow

MODEL NO. MOLDBOARD HEIGHT PATH MIN/MAX MATERIAL PRWG REV POSITION WEIGHT (LBS) PRL REV POSITION WEIGHT (LBS) PRR REV POSITION WEIGHT (LBS) PRRL REV POSTION WEIGHT (LBS)
R936TE 36″ 7′ 5″ to 9′ STEEL 35 TO 0 DEG 2140 35, 28, 21, 0 DEG 2040 35 TO 0 DEG 2015 37, 30, 20, 10, 0 DEG 2035
R1036TE 36″ 8′ 2-1/2″ to 10′ STEEL 35 TO 0 DEG 2240 35, 28, 21, 0 DEG 2140 35 TO 0 DEG 2115 37, 30, 20, 10, 0 DEG 2135
R1042TE 42″ 8′ 2-1/2″ to 10′ STEEL 35 TO 0 DEG 2290 35, 28, 21, 0 DEG 2190 35 TO 0 DEG 2165 37, 30, 20, 10, 0 DEG 2185
R1136TE 36″ 9′ to 11′ STEEL 35 TO 0 DEG 2340 35, 28, 21, 0 DEG 2440 35 TO 0 DEG 2540 37, 30, 20, 10, 0 DEG 2560
R1142TE 42″ 9′ to 11′ STEEL 35 TO 0 DEG 2390 35, 28, 21, 0 DEG 2490 35 TO 0 DEG 2590 37, 30, 20, 10, 0 DEG 2610
R1242TE 42″ 9′ 10″ to 12′ STEEL 35 TO 0 DEG 2490 35, 28, 21, 0 DEG 2590 35 TO 0 DEG 2690 37, 30, 20, 10, 0 DEG 2710
R1248TE 48″ 9′ 10″ to 12′ STEEL 35 TO 0 DEG 2540 35, 28, 21, 0 DEG 2640 35 TO 0 DEG 2740 37, 30, 20, 10, 0 DEG 2760
R1442TE 42″ 11′ 1/2″ to 14′ STEEL 35 TO 0 DEG 2690 35, 28, 21, 0 DEG 2790 35 TO 0 DEG 2890 37, 30, 20, 10, 0 DEG 2910
R104662TE 46″ to 62″ 8′ 2-1/2″ to 10′ STEEL 35 TO 0 DEG 2340 35, 28, 21, 0 DEG 2240 35 TO 0 DEG 2215 37, 30, 20, 10, 0 DEG 2235
R113645TE 26″ to 45″ 9′ to 11′ STEEL 35 TO 0 DEG 2440 35, 28, 21, 0 DEG 2540 35 TO 0 DEG 2640 37, 30, 20, 10, 0 DEG 2660
R114654TE 46″ to 54″ 9′ to 11′ STEEL 35 TO 0 DEG 2490 35, 28, 21, 0 DEG 2590 35 TO 0 DEG 2690 37, 30, 20, 10, 0 DEG 2710
R114254TEF 42″ to 54″ 9′ to 11′ STEEL 35 TO 0 DEG 2465 35, 28, 21, 0 DEG 2565 35 TO 0 DEG 2665 37, 30, 20, 10, 0 DEG 2685
R114654TEF 46″ to 54″ 9′ to 11′ STEEL 35 TO 0 DEG 2415 35, 28, 21, 0 DEG 2515 35 TO 0 DEG 2615 37, 30, 20, 10, 0 DEG 2635
R123645TEF 36″ to 45″ 9′ 10″ to 12′ STEEL 35 TO 0 DEG 2540 35, 28, 21, 0 DEG 2640 35 TO 0 DEG 2740 37, 30, 20, 10, 0 DEG 2760
R144254TEF 42″ to 54″ 11′ 1/2″ to 14′ STEEL 35 TO 0 DEG 2765 35, 28, 21, 0 DEG 2865 35 TO 0 DEG 2965 37, 30, 20, 10, 0 DEG 2985
R1036TEP 36″ 8′ 2-1/2″ to 10′ POLY 35 TO 0 DEG 1990 35, 28, 21, 0 DEG 1890 35 TO 0 DEG 1990 37, 30, 20, 10, 0 DEG 2010
R1042TEP 42″ 9′ to 11′ POLY 35 TO 0 DEG 2040 35, 28, 21, 0 DEG 1940 35 TO 0 DEG 2040 37, 30, 20, 10, 0 DEG 2060
R1136TEP 36″ 9′ to 11′ POLY 35 TO 0 DEG 2090 35, 28, 21, 0 DEG 2190 35 TO 0 DEG 2290 37, 30, 20, 10, 0 DEG 2310
R1142TEP 42″ 9′ to 11′ POLY 35 TO 0 DEG 2140 35, 28, 21, 0 DEG 2240 35 TO 0 DEG 2340 37, 30, 20, 10, 0 DEG 2360
R1242TEP 42″ 9′ 10″ to 12′ POLY 35 TO 0 DEG 2240 35, 28, 21, 0 DEG 2340 35 TO 0 DEG 2440 37, 30, 20, 10, 0 DEG 2460
R114654TEP 46″ to 54″ 9′ to 11′ POLY 35 TO 0 DEG 2165 35, 28, 21, 0 DEG 2265 35 TO 0 DEG 2365 37, 30, 20, 10, 0 DEG 2385
Available in us

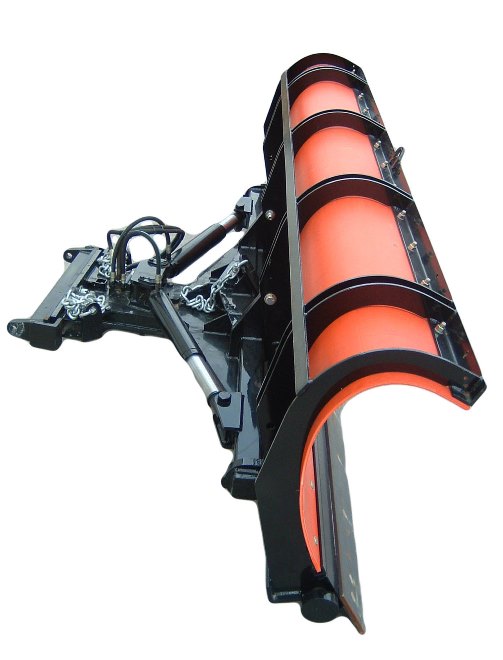

TRIP EDGE “J” PLOW

This versatile plow features a heavy-duty, power-reversing pushframe to discharge snow to the left, right, or pushed straight ahead. This plow is ideal for urban areas and parking lots.
Spec Sheet: JPLOW Manual: J-PLOW

WIDTH HEIGHT MOLDBOARD THICKNESS APPROX. WEIGHT
10’ 39” 3/8” Poly 2150 lbs
12’ 39” 3/8” Poly 2350 lbs
14’ 39” 3/8” Poly 2518 lbs
Available in caAvailable in us

FLEX PLOW

Go from a straight to flared moldboard in seconds with the Viking-Cives Flex Plow - the pinnacle of snowplow versatility. Hydraulic cylinders allow you to adjust the curl and contour of your moldboard without slowing down. They can also be plumbed in one of several ways to give operators as much control as necessary.
Spec Sheet: Flex Plow

MODEL NO. MOLDBOARD HEIGHT
(NOSE/DISCHARGE)		 PATH MIN/MAX MATERIAL WEIGHT (LBS)
R102233LDFL 22″/ 33″ 8′ to 10′ POLY 1370
R103250FL 32″/ 50″ 8′ 2″ to 10′ POLY 2400
R113151FL 31″/ 51″ 9′ to 11′ POLY 2500
R123052FL 30″/ 52″ 9′ 10″ to 12′ POLY 2600
R143052FL 30″/ 52″ 11′ 6″ to 14′ POLY 2800
Available in us

PARALLEL J Lift Plow

Viking Cives Parallel Lift Plows are available as a J-Plow Trip Edge or an MW Full Trip.
Spec Sheet: PARALLEL LIFT PLOW Manual: PARALLEL LIFT J PLOW

Other Information

  • 10’, 11’, 12’, & 14’ long moldboards
  • 27” or 39” high
  • Single or three section trip edge
  • 3/8” high molecular poly moldboard
